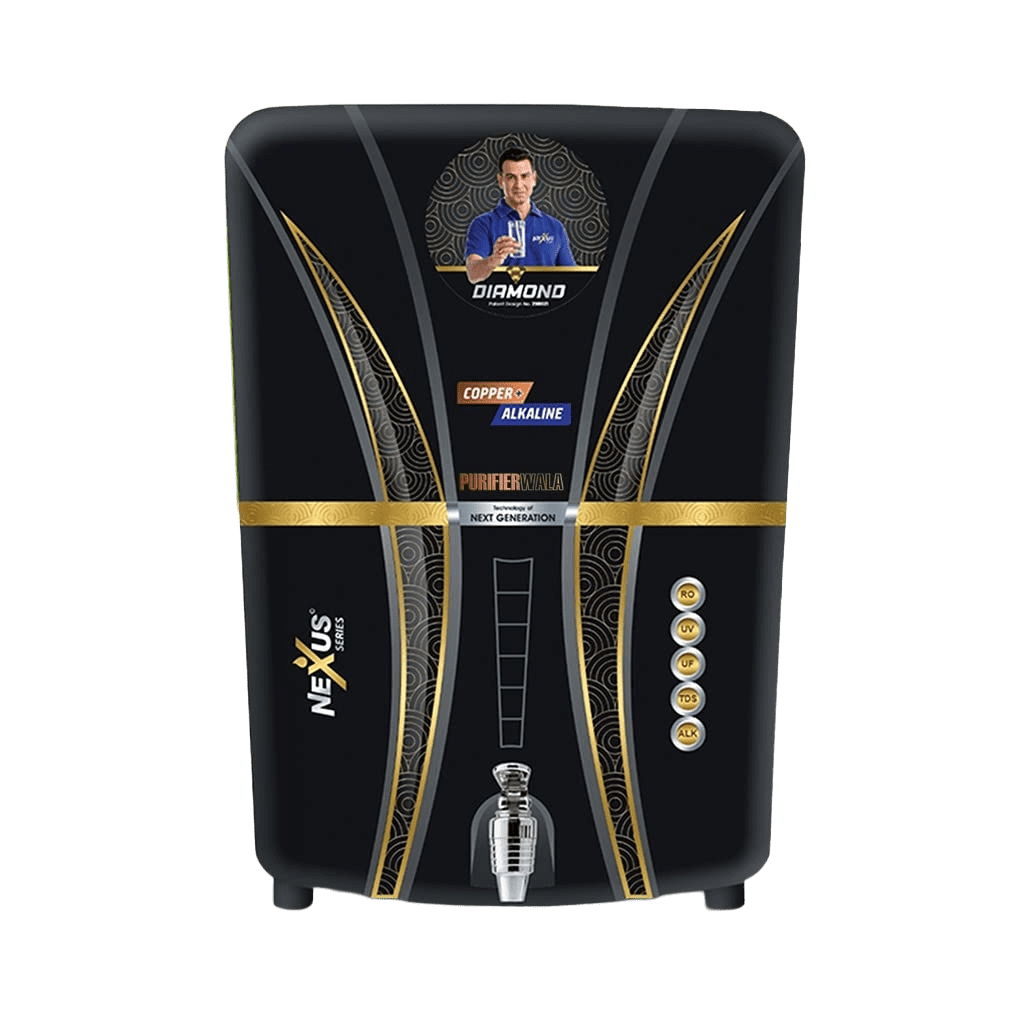

Nexus Diamond RO + UV + UF + Minerals (B12 / Alkaline)
Purity at its Peak. Mineral-Enriched Drinking Water.
The Nexus Diamond series offers a high-capacity 12-liter storage solution paired with advanced 13-stage purification technology. Designed to handle diverse water sources, it provides your family with safe, pH-balanced, and mineral-fortified water every day.
Key Highlights
- 13-Stage Advanced Filtration: A robust multi-layer defense system that removes bacteria, viruses, and dissolved chemicals.
- B12 and Alkaline Enrichment: Specially formulated to maintain a healthy body pH level and infuse water with essential nutrients.
- High-Capacity Storage: Large 12-liter food-grade tank ensures a steady supply of pure water even during power outages.
- Smart Operation: Fully automatic water level sensors with Auto-start and Auto-off functionality to prevent water wastage.
Exclusive Service Benefits
| Service Type | Details |
|---|---|
| Delivery | Same Day Free Delivery |
| Installation | Same Day Free Installation |
| Warranty | 1 Year Comprehensive Warranty |
| Payment Options | COD, UPI, Net Banking, Credit/Debit Cards |
Technical Specifications
| Feature | Details |
|---|---|
| Purification Capacity | 12 – 15 Litres per hour |
| Storage Tank Capacity | 12 Litres |
| Maximum Duty Cycle | 120 Litres per day |
| Core Hardware | 100 GPD Motor Pump / 80 GPD Membrane |
| TDS Handling | Up to 1000 PPM (95% Rejection Rate) |
| Dimensions | 17 x 35 x 47 Centimeters |
| Operating Voltage | 24V DC (Input 160-300V AC) |
| Mounting | Wall Mount Installation |
Detailed 13-Stage Purification Sequence
1Pre-Candle | 2. Sediment Cartridge | 3. Activated Carbon | 4. Post Carbon | 5. 80 GPD RO Membrane | 6. UV Disinfection | 7. UF Filtration | 8. Anti-Bacterial Ball | 9. Alkaline Ceramic Ball | 10. Pure Magnesium Granular | 11. Black Silica | 12. Red Mineral Balls | 13. pH Stone & Activated Charcoal.
Operating Guidelines
- Water Pressure: Minimum 0.3 kg/sq cm | Maximum 2 kg/sq cm. (Note: If inlet pressure is more than 2kg/sq cm, install a PRV before the unit).
- Water Temperature: Suitable for water between 5 Degrees Celsius and 50 Degrees Celsius.
- Hardness Support: Handles up to 2000 ppm (max) total hardness.
